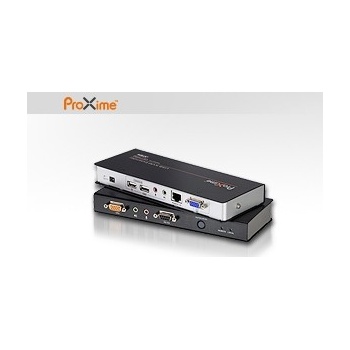

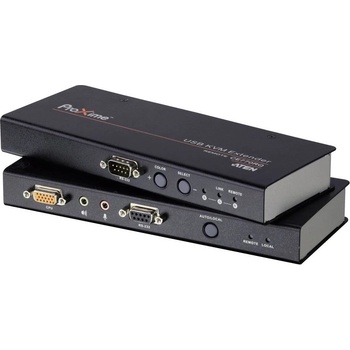

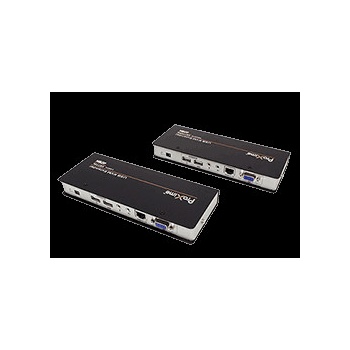

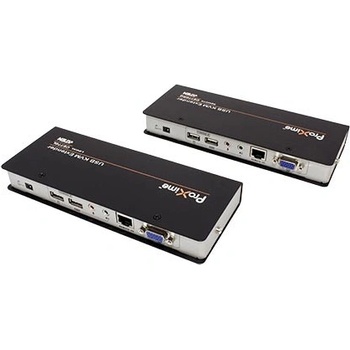

Aten CE-770 USB KVM Extender with Deskew function and RS232 300 m

audio a konzole extender s USB klávesnicí a myší +RS-232 port, vzdálenost až 300 metrů přes Cat. 5 STP/FTP, funkce Deskew (automatické nastavení RGB signálů), ochrana proti přepětí, úchyty do 19" racku

The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console.

The CE770 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE770's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

Local and Remote Units connect at distances up to 300 m using Cat 5e cable

Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles

Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance

Built-in ASIC for greater reliability and compatibility

Auto Signal Compensation (ASC)

RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners

Sun/Mac keyboard support and emulation*

Audio Enabled - supports stereo speakers and microphone

USB overcurrent detection and prevention

Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button

Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)

Superior Audio - no loss in audio quality at 300 m

Spports Wide Screen formats

Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B

Hot pluggable

Rack mountable

Easy to install - no software required - connecting cables to the devices is all it takes 1. PC keyboard combinations emulate Sun/Mac keyboards 2. Sun/Mac keyboards only work with their own computers ¨

Package Content 1x CE770L USB KVM Extender (Local Unit) 1x CE770RQ USB KVM Extender (Remote Unit) 1x USB KVM Cable (1.8m) 2x Power Adapter 1x Rack Mount Kits 2x Grounding Wires 1x User Manual 1x Quick Start Guide

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
