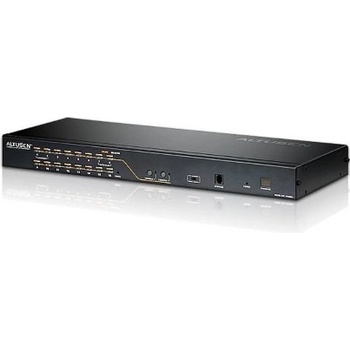

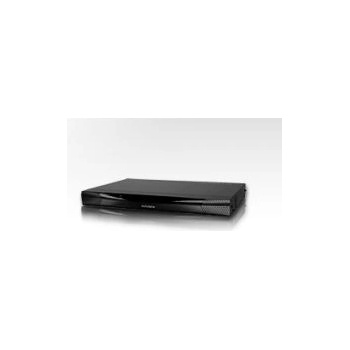

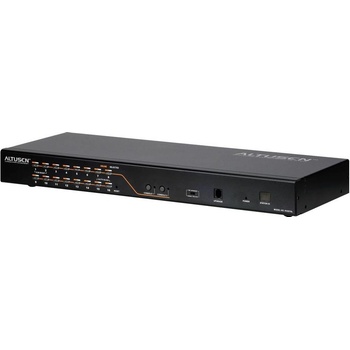

Aten KH-2516 Altusen KVM 2 Consoles /16-port High-Density Cat 5

The KH2516A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (one bus). Operators working at up to two consoles can independently and simultaneously take control of up to 16 computers. By daisy chaining up to 15 additional switches, as many as 256 computers can be controlled from the original KVM consoles.

This switch has been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

Two KVM consoles independently and simultaneously control up to 16 directly connected computers

By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console

Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides

Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters *With KVM Adapter Cable KA7000 series

Configure port access rights for users on a port - by - port basis

Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes

Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)

Multiplatform support – PC, Mac, Sun, and serial

Multiple User Accounts -Supports up to 10 user and 1 administrator accounts

Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation

Auto Scan mode enables continuous monitoring of user-selected computers

Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously

Adapter ID

Firmware Upgradeable

For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters. Other advances found with these switches includes enhanced video quality – extending the distance to the servers to up to 50 m at a resolution of 1280 x 1024.*With KVM Adapter Cable KA7000 series

A KH2516A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH2516A KVM switch.

Package Contents 1x KH2516A Cat 5 High-Density KVM Switch 1x Firmware Upgrade Cable 1x Power Cord 1x Grounding Wire 1x Rack Mount Kit 1x Foot Pad Set (4 pcs.) 1x User Manual 1x Quick Start Guide
