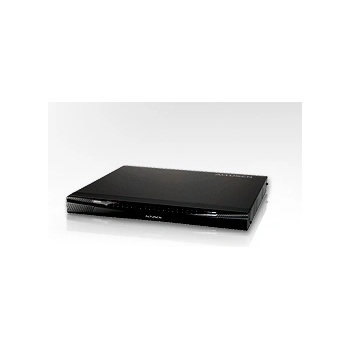

Aten KN-2140V Altusen KVM 40-port over the Net IP+Virtual Media

KVM over the NET - 40-portový KVM přepínač s přístupem přes IP, OSD, lze dát do 19" racku, 3 současné přístupy (1 z lokální a 2 ze vzdálené konzole), podpora pro přenos audia, redundandní zdroje, virtuální media (pro snadnou instalaci softwaru na vzdáleném PC)

The new generation of KVM over the NET™ switches allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.

A special Message Board feature - which like an internet chat program - lets any number of remotely logged in users exchange information and communicate with each other or to cooperatively manage the installation. A Panel Array Mode - allows real-time monitoring of 40 servers at once. Other features that contribute to the switches' powerful capabilities include: Mouse DynaSync, Adapter ID, and Virtual Media support.

With their dual on-board NICs and dual power supplies, these switches have been built for 24/7 reliability to ensure the highest rate of availability for your server room and data center services.

Now, using Altusen KVM Over the NET™ switches, IT administrators can manage their server rooms and data centers from practically anywhere - minimizing travel costs and MTTR (Mean Time to Repair) - and ensuring the highest availability of data center services possible.

Features

Hardware

High port density - RJ-45 connectors and Cat 5e/6 cable for up to 40 ports in a 1U housing

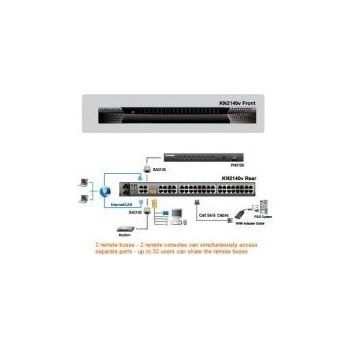

Two separate buses for remote KVM over IP access

Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation

Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity

Local console provides PS/2 and USB keyboard and mouse support

Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices

Audio enabled

Virtual Media Support

Dual Power Supply

High video resolution - up to 1600 x 1200 @ 60Hz - 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hz with 24 bit color depth for remote sessions, at up to 50 m

Monitor and control up to 40 computers on a single level, or control up to 640 computers in a two-level cascade* * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, and KH1516

Management

Up to 64 user accounts - up to 32 users simultaneously share the control

Fan speed varies according to temperature NEW!

End session feature - administrators can terminate running sessions

Event logging and Windows-based Log Server support

Critical system events sent by email and SNMP trap; and Syslog support NEW!

Firmware upgradeable

Modem dial-in/dial back support

Adapter ID

Port Share Mode allows multiple users to gain access to a server simultaneously

Integration with ALTUSEN CC2000 Management software

Power Over the NET™ integration for remote power control

Ease-to-Use Interface

Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity

Multiplatform client support (Windows, Mac OS X, Linux, Sun)

Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)

Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required NEW!

User can launch multiple Virtual Remote Desktop to control multiple connected servers from the same login session NEW!

Magic Panel

Full-screen or sizable and scalable Virtual Remote Desktop

Panel Array Mode

Advanced Security

Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory

Advanced security features include password protection and advanced encryption technologies - 1024 bit RSA; 56 bit DES; 256 bit AES; and 128 bit SSL

Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption NEW!

Support for IP/MAC Filter

Supports strong password protection

Configurable user and group permissions for server access and control

Local and remote access logged and authenticated

Private CA NEW!

Virtual Media

Virtual media enables file applications, OS patching, software installation and diagnostic testing NEW!

Works with USB enabled servers in operating system and BIOS level

Supports DVD/CD drives, USB mass storage devices, PC hard drives and ISO images

Virtual Remote Desktop

Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations

Full screen video display or scalable video display

Message Board for communication among remote users

Mouse DynaSync

Keyboard pass through support

Exit Macros support NEW!

On-screen keyboard with multilanguage support

BIOS-level access

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
