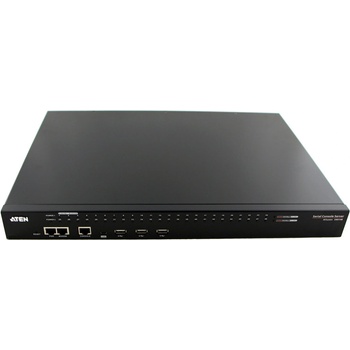

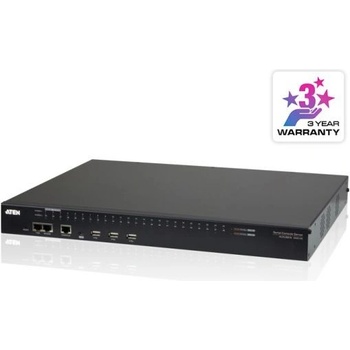

ATEN SN0148-AX-G

The ALTUSEN SN series of serial console servers integrate cutting Features edge technologies with secure enterprise communications. Available in 48-port models, the serial console server offers both in-band and out-of-band remote serial console access to servers and network devices, via a direct Telnet/SSH client or an applet viewer. SN works in tandem with the ALTUSEN Power Over the NET™ remote power management system. Both can be managed with CC2000 management software to provide centralized data center management and integrated power management. With their comprehensive features, SN series of serial console servers help maximize IT productivity, provide scalability and reduce operational costs.

The serial console server is used to connect serial devices to the Ethernet network to meet the needs of demanding applications in industrial control, data acquisition, environment monitoring, and remote facility and equipment management. It offers versatile operation modes including Real COM Port, TCP Server/Client, UDP Server/Client, Serial Tunnel and Virtual Modem.It helps transform the capabilities of legacy serial devices to take advantage of the TCP/IP network to allow remote access, configuration, and management of the serial devices from anywhere in the world over the Internet.

SN series is a complete secure remote access and control solution. Access rights and privilege control can be applied to individual ports. Consolidated authentication simplifies password management. Data encryption is provided. Logging and alerting helps speed resolution of issues and mitigates risk. Enhanced security functions ensure the compliance of internal security mandates. The ease of use, accessibility and manageability of the SN series serial console servers enables a quick response to changing demands and helps meet ultimate business goals.

Features:

System Accessibility and Availability

Secure in-band and out-of-band network access to serial consoles

In-band access of Ethernet

Browser access with an intuitive GUI

Terminal-based access with a menu-driven UI

Out-of-band access of dial-up modem

Modem dial-in/dial-back/dial-out

Front access USB ports for USB storage or for USB-based PC cards

Laptop USB Console (LUC) port for extra local console access via laptop computer

Dual Ethernet ports for failover or for dual IP addresses access

Dual power supply

Serial Console Management

Convenient and simple access via browser or Telnet/SSH client

Port access via Telnet/SSH client and third-party client such as PuTTY

Direct port access from Telnet client – bypassing login to SN

Convenient port access via the applet serial viewer from SN Web GUI

Selectable Telnet or SSH for the serial viewer

Selectable ActiveX or Java for the serial viewer

Comprehensive viewer function – Copy/paste, logging, data import, Macro, broadcast and Message Board

Sun Solaris ready – Sun "break-safe"

Alert String

Command filter - Administrators can restrict users to execute only predefined commands*

Data buffering

Multiple users simultaneously access to the same port – up to 16 connections per port.

Selectable mode for multiple simultaneous access – Exclusive/Occupy/Share mode

Integrated with Power Over the NET product for port and power outlet association

Security

SSH and SSL support

Private certificate support – SN0148 support CA certificate

Configurable user permissions for port access and control

Configurable group permission for port access and control

Local and remote authentication and logging

SN0148 support RADIUS, TACACS+, LDAP/AD, and Kerberos

IP filtering and MAC filtering

System Management

System confi guration via Web browser of HTTP/HTTPS, Telnet/SSH client and local console

System log and event logging

Comprehensive logging and event notifi cation

ATEN Log server and Syslog server

SNMP agent

Event notification – SN0148 support notification of SMTP email, SNMP Trap, and SMS (with additional mobile device)

Backup/restore system confi guration

Firmware upgradeable

Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, and Netscape

Customizable global time zone

NTP for time server synchronization

DHCP for dynamic IP address assignment

IPv6 support

Integrated with CC2000 for data center centralized management

Serial Device Management

Versatile serial operating modes – SN0148 support Real COM, TCP Server, TCP Client, UDP, Serial Tunnel and Virtual Modem 128-bit/256-bit SSL encryption for Real COM, TCP Server, TCP Client, Serial Tunnel and Virtual Modem

Multiple simultaneous connections to the same port – up to 16 connections per port

Real COM driver for Windows 2000/XP/Vista/7 and Windows Server 2003/2008

Real TTY driver for Linux

Fixed TTY driver for UNIX

Language

Web-based GUI multi-language – available for Japanese, Korean, German, Russian, Simplifi ed Chinese and Traditional Chinese

Package Contents 1x SN0148 Serial Console Server 1x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE) 1x SA0141 Serial Adapt
